Gridded Tubes

For over 24 years, we have been supplying our customers with power tubes providing outstanding performance and long life. All our tubes are subjected to extensive high voltage conditioning and full functional RF/DC testing procedures and are backed by our exceptional technical support; from selection for OEMs building new equipment to helping equipment owners get the best from their triodes and tetrodes in operating performance and life.

General

Title Datasheet
Preamble
Guidance notes on the use of gridded tubes

Industrial Triodes

Type Po Vf If MHz Va Pa Mu Datasheet
BR1606F 30 6.6 100 30 10 10 24
BW1606J2F 30 6.6 100 30 10 15 24
BR1610F 30 6.6 103 30 9 10 13
BW1610J2F 30 6.6 100 30 10 15 13
BR1606F 38 7.5 100 30 10 10 23
BW1607J2F 38 7.5 100 30 10 15 23
BR1617F 38 6.3 160 30 10 10 23
BW1617J2F 38 6.3 160 30 10 15 23
BW1605J2F 70 8.2 230 30 10 40 20.5
BR1601F 118 8.2 238 30 13 30 40
BW1601J2F 118 8.2 238 30 13 50 40
BR1608F 118 12 178 30 13 30 40
BW1608J2F 118 12 178 30 13 50 40
BR1647F 118 8.2 238 30 13 30 28
BW1647J2F 118 8.2 238 30 13 50 28
BW1665J2F 130 11 240 30 14 50 24
BW1184J2/F 166 12.2 255 30 14.4 80 30
BW1185J2 240 12.6 380 30 16.8 120 41
BW1185J2B 240 12.6 380 30 16.8 120 41
BW1602J2F 400 18 330 30 18 200 35
BW3300J2 450 16 425 30 17 200 35
BW1643J2 530 14 555 30 19.5 300 35

HV Laser Control Tubes

Type Vf If Va Pa Mu Datasheet
BR1651 6.3 33 35 5 100
BW1661J2 5.7 135 14 201 120

Broadcast Triodes

Type Output Power (kW) Operating Frequency (MHz)* Replacement For Datasheet
BW1161 / BY1161 SERIES 100 10 / 30 -
120 10 / 30 -
100 10 / 30 -
BY1144L 200 27 -
BY1654F 25 30 -

Broadcast Tetrodes

Type Output Power (kW) Operating Frequency (MHz)* Replacement For Datasheet
4CX35000C 82.5 30 - -
CW1600J2 165 30 -
CW1603J2 305 100 TH537
CY1170J 82.5 30 -
CY1172 220 30 RS2002
CY1637 82.5 30 4CV100,000C

Marine Magnetrons

e2v is the world’s largest manufacturer of pulse magnetrons and a world leader in magnetron technology. Its product capabilities range in frequency from 1GHz to 95GHz at powers from 1.5kW to 6MW and encompass a wide range of anode, cathode and tuning technologies, dependent upon the application.
The company has been manufacturing magnetrons, established under the EEV brand, for several decades. e2v aims to meet the stringent specifications for the military market, the power, long life and low running costs for industry and medicine, and to achieve the price performance requirements for the highly competitive marine and airborne radar markets.

In 2003, e2v won a Queen's Award in the International Trade category for its low-power linear accelerator (LINAC) magnetrons, which provide the vital microwave energy in radiotherapy machines. In 2004, e2v was presented with a Queen’s Award for Innovation for its fast tune magnetron.
e2v recently launched its new MG6090 series of magnetrons to the market. The tunable S-band MG6090 has been developed in direct response to customer requirements, and has been designed specifically for radiotherapy linear accelerator use.

Linac Magnetrons Datasheets

Part NO. Frequency (MHz) Peak Power (kW) Datasheet
M5028 2852 - 2861 5500
MG5125 2993 - 3002 2000
MG5125P 2993 - 3002 2000
MG5125X 2993 - 3002 2000
MG5193 2993 - 3002 2600
MG6028 2852 - 2861 5500
MG6090 2993 - 3002 3100
MG6060 2992 - 3002 2600 -
MG6062 - - -
MG8076 2998 - +/-5 7500

MARIN MAGNETRONS DATASHEETS

Product affected Datasheet
Marine magnetrons MG5222
Marine magnetrons MG5264
Marine magnetrons M5187
Marine magnetrons M5187F

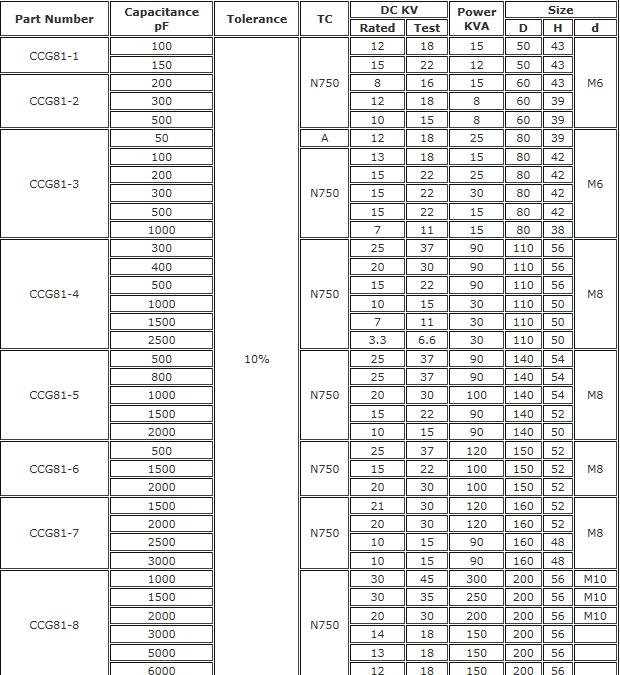

Ceramic Capacitors

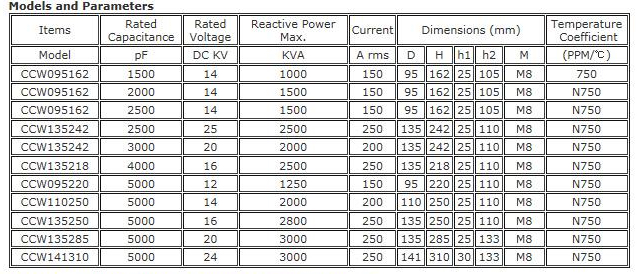

Water Cooled Capacitors

Spark Gaps

e2v produces a range of specialised two- and three-electrode spark gaps and trigger transformers. These were originally developed for specific customer applications, but we also offer bespoke solutions.

Spark Gaps Datasheets

Product Type Number Glass or Ceramic DC or Hold off voltage (KV) Datasheet
GXF 5 - 400 Ceramic 0.5 - 40
GXH 2.5 - 100 Glass 0.25 - 10
GXHP 2.5-100 Glass 0.25 - 10
GXY 30 - 300 Ceramic 3 - 15

3 Electrode Spark Gaps

Product Type Number Glass or Ceramic DC or Hold off voltage (KV) Datasheet
GXG 150 - 500 Ceramic 15 - 50
GXT 30 - 380 Ceramic 3 - 25

Trigger Transformers

Product Type Number Voltage Transformation Ratio (minimum) Datasheet
JR200 62 : 1
MA2162A -
MA785A 150 : 1
MA819A 100 : 1

Thyratrons

Our team of dedicated thyratron specialists work on the design and manufacture of our high quality thyratrons, providing technical support for existing applications and developing appropriate solutions for new projects.
Five decades of research, development and continuous production experience in the field of hydrogen thyratron manufacture, coupled with our extensive testing facilities and test programmes, guarantee the strictest control over design, materials and manufacturing processes.
Our policy of continually developing thyratron technology and circuit techniques ensures the best possible solution is available to our customers.
Our Capabilities:

  • A range of over 200 standard thyratrons
  • Anode voltages from 5 kV to 200 kV
  • Peak currents from 100 A to 100 kA
  • Lowest operating costs with high quality devices
  • Dedicated engineering support

Product Type Number Brief Description Datasheet
- Thyratron preamble
- Accessories for Hydrogen Thyratrons
- Product safety Glass Thyratron
- Product Safety Metal / Ceramic Thyratron
MA2235A/B Air cooling module for 3 inch diam. thyratrons
MA2709A Thyratron trigger box
MA942A Resistor box for use with all "X" type thyratrons
MA2161A/B Cooling module for 4.5 inch diameter thyratrons
MA2438B/MA2440B Single pulse trigger with dc drive modules

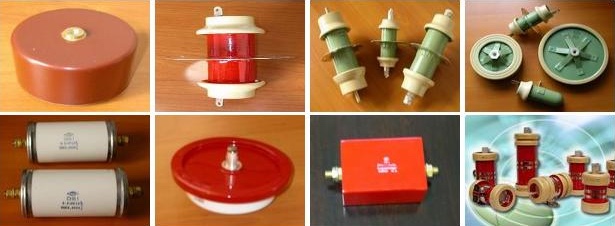

Other Ceramic Capacitors

Other types of high voltate high power ceramic capacitors
  • Feed through
  • Door knob / barrel
  • Pot type
  • Tubular type
